Video Streaming Service
Hardware Equipment:

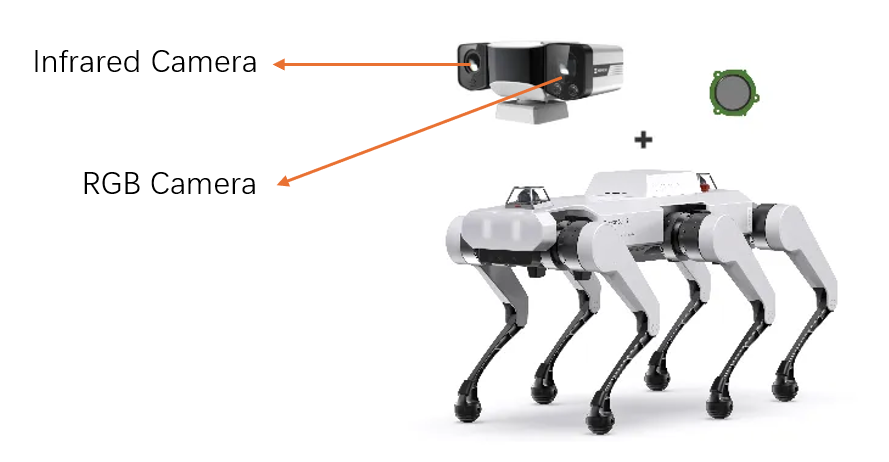

The PTZ Camera of Daystar Robot Dog can provide both visible light and infrared video streams, as shown below:
Software Interface:
The PTZ Camera video streams can be accessed through standard RTSP API network interfaces.
- RGB Camera Stream URL:
rtsp://admin:yoseen2018@192.168.100.202:554/h264/ch1/sub/av_stream - Infrared Camera Stream URL:
rtsp://admin:yoseen2018@192.168.100.202:554/h264/ch2/sub/av_stream
Important Notes:
- The development device needs to connect to the robot dog's network (WiFi Name:
IS_** WiFiPassword:DaystarBot) to access video streams. - The Camera Stream URLs should be adjusted according to IP of the robot dog:
- After connecting to the robot dog's network, check whether the robot dog's IP is
192.168.100.*or192.168.144.*- If the segment is
100, use192.168.100.202in the stream URL - If the segment is
144, use192.168.144.202in the stream URL
- If the segment is
- After connecting to the robot dog's network, check whether the robot dog's IP is
Video Stream Verification and Testing:

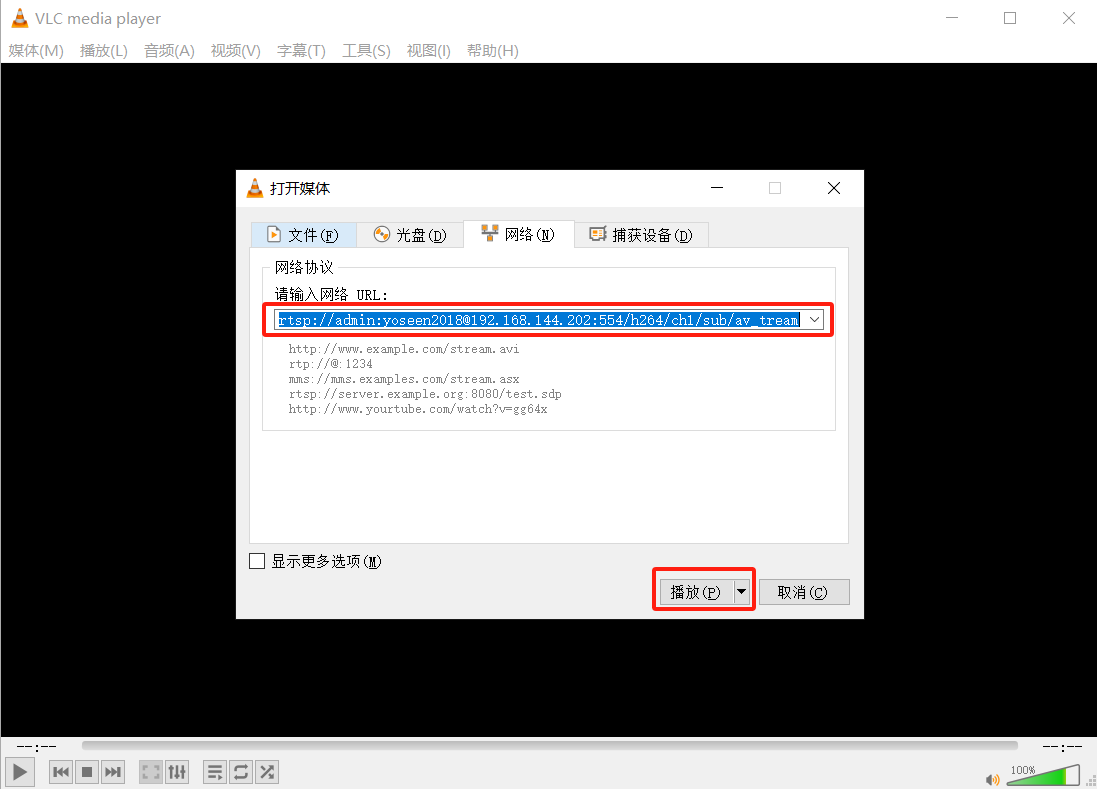

You can use VLC media player to connect and display the video streams.
RGB Camera:

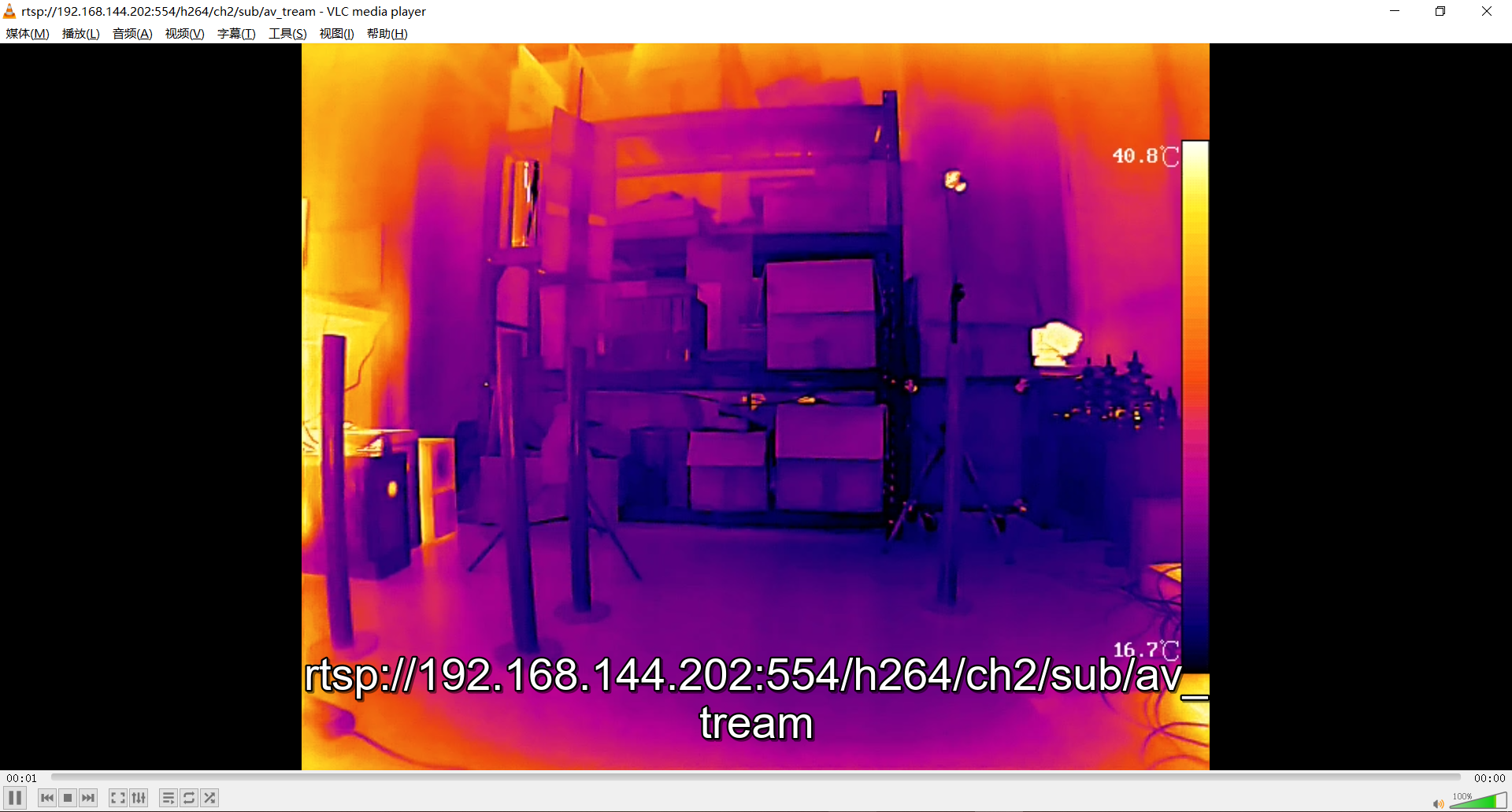

Infrared Camera:
